- Measures specific gravity or density and ambient temperature
- Tests liquids and lead acid batteries
- ± 0.001 g/cm3 accuracy
- Automatic temperature compensation
- Ergonomic, lightweight design enabling one-hand operation and measurement
- Stores up to 100 sample IDs for easy sample identification
- Stores up to 1100 measurements including time stamps and sample IDs
- Ability to connect with the SBS-6500 impedance tester via Bluetooth for integrated data and reporting
- 2.4" LCD color display
SBS 2510
- 2.4" LCD color display
- Automatic temperature compensation
- Tests liquids and lead acid batteries
- Ergonomic, lightweight design enabling one-hand operation and measurement
- Ability to connect with the SBS-6500 impedance tester via Bluetooth for integrated data and reporting

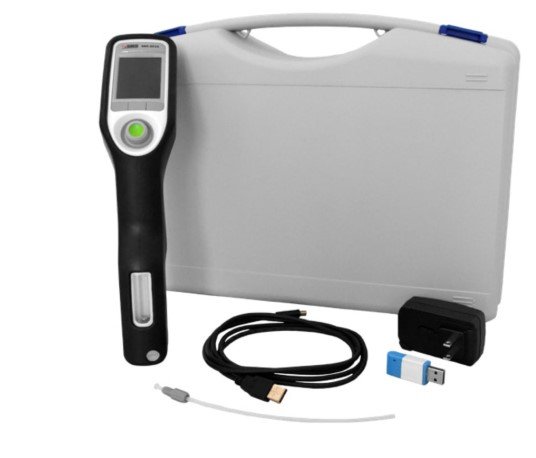

Digital Hydrometer, Density Meter
The SBS-2510 is ergonomically designed and lightweight, allowing one-handed operation. An easy-to-use joystick offers intuitive operation with guided workflow. A built-in motor and automatic sampling pump draw electrolyte into the hydrometer for quick readings. The unit is able to take readings between the range of 0.000 to 3.000.
Easily connect to a printer via USB or Bluetooth directly to the SBS-6500 battery impedance tester for convenient data management.
Maintaining the digital hydrometer through proper maintenance is essential to long-lasting service life and accuracy. SBS recommends a maintenance interval of at least once a year. SBS is able to meet all battery testing and service needs.
Applications
- Utility
- UPS
- Data Centers
- Telecom
- Material Handling
- Battery Manufacturing
- Chemical Processes
-
Tech Specs
Battery Testing/Hydrometer Template
Methods of Detection
Specific gravity; oscillating tube method
Min Temperature
32 F
Max Temperature
122 F (50 C)
Displays Temperature C
Yes
Displays Temperature F
Yes
Measuring Time
4 SECONDS (4 s)
Accuracy
±0.001; temperature: ±0.3° F (0.2° C)
Test Equipment General Attributes
Product Weight
1 LBS
Product Height
3.1 IN
Product Length
11.3 IN
Product Width
2.2 IN
Shipping Weight
2.50 LBS
HTS/Schedule B Number
90247804560
Battery Type
Other
Power Supply Voltage
Battery Powered
Country of Origin
Germany
Shipping Height
4 IN
Shipping Length
12 IN
Shipping Width
3 IN
